12000 Lumen 3D Projection Mapping Projector Motorized Lens 1920x1080 Keystone Correction

Product Name : Laser Projector

Display Type : 3LCD

Laser Life Time : 20,000-30,000 hours

Brand Name : SMX

Model Number : MX-X12000U

Certification : ISO, CE, ROHS

Place of Origin : China

MOQ : 1

Payment Terms : ,T/T,Western Union

Supply Ability : 10000pcs/monthly

Delivery Time : 7-15days

Packaging Details : Carton

Len Type : Motorized/Manual Lens

Brightness : 12000 Lumens

Resolution : 1920 x 1080

Keystone Correction : Yes

Lens : Motorized Lens

Connectivity : HDMI, VGA, USB, Ethernet

Contrast : 100000:1

Technology : 3LCD Laser

Application : 3D Projection Mapping

Light Source : Laser

Applictaion : 3D Mapping

Features : Maintenance Free

Contact Now

12000 Lumen 3D Projection Mapping Projector with Motorized Lens

Experience unparalleled brightness, vibrant colors, and long-lasting performance with our cutting-edge 12000 Lumen 3LCD Laser Projector. Designed for demanding large-venue environments, this projector delivers stunning visuals that captivate and engage.

12000 Lumen 3D Projection Mapping Projector Motorized Lens 1920x1080 Keystone Correction

Main Specifications

Model
	Model	MX-X12000U
	Brightness( Ansi Lumens )	12000lumen
	Resolution	WUXGA (1920 x 1200)
	Light source	Laser
Overall Spec
Panel	Display Panel	3x0.76"
	Display Technology	Liquid Crystal Display
	Native Resolution	WUXGA (1920 x 1200)
Light source Life time	Normal mode	20000hrs
Light source Life time	ECO mode	20000hrs
Projection Lens	Len Type	Zoom Lens
	Zoom/Focus	Manual
	Throw Ratio(16:10)	1.46-2.95
	F#(Wide-Tele)	F1.7~2.37
	f(mm)	24.4-48.6
	Zoom Ratio	2
	Screen size	40-500 inch
	Weight	Approx 0.8kg
	Lens Shift V	+50%,-10%
	Lens Shift H	±20%
CR	Contrast Ratio(Min)	100000:1
Noise	Noise(dB)	Normal(90%): 35dB ECO1(75% ): 32dB ECO2(45% ): 32dB
Uniformity	Uniformity	80%
AR	Aspect Ratio	Native:16:10 Compatible: 4:3/16:9/normal
Terminal(I/O port)
Input	VGA	*1
	HDMI 1.4(IN)	*2
	USB-A	*1(5V/1.5A)
	USB-B	*1(Display)
	RJ45	*1(Display)
	DVI-D	*1
	HD BaseT	*1
	HD-SDI(3G-SDI)	Optional
	Audio in (mini jack,3.5mm)	*1 (VGA/DVI-D share)
Output	VGA	*1
	HDMI 1.4(OUT)	*1
	Audio out (mini-jack,3.5mm)	*1
Control	RS232	*1
	RJ45	*1 (Control)
	USB-B	*1 (For upgrade)
	Wired Remote(IN)	*1
	Wired Remote(OUT)	*1

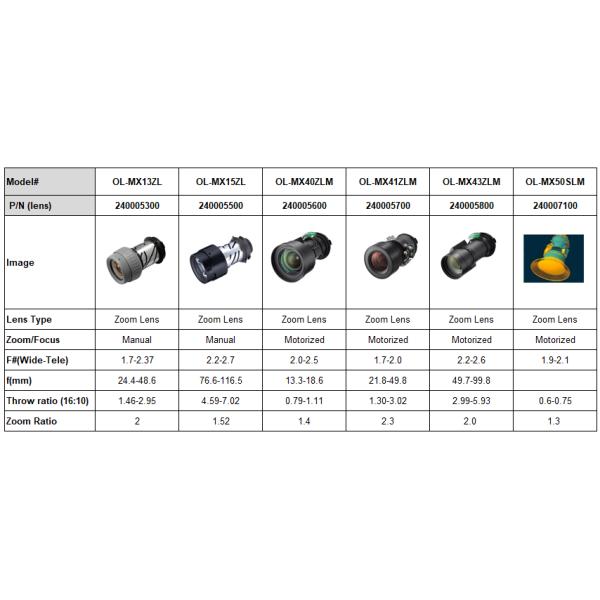

Optional Lenses

Key Features

Exceptional Brightness: 12,000 lumens ensures vivid images even in brightly lit spaces.
Superior 3LCD Technology: Eliminates rainbow effect with 100% RGB color signal for every frame.

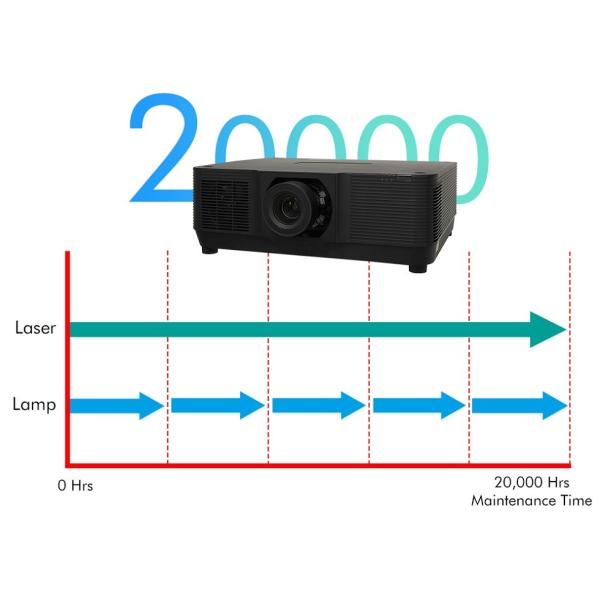

Laser Light Source: 20,000-30,000 hours maintenance-free operation with instant on/off capability.
High Resolution: WUXGA (1920 x 1200) native resolution with 4K input support.
Outstanding Contrast Ratio: 100,000:1 ratio for deep blacks and bright whites.
Flexible Installation: 360° projection, motorized lens controls, and interchangeable lenses.
Advanced Connectivity: Comprehensive inputs including HDMI, DVI-D, HDBaseT, USB, and network control.
Image Enhancement: Edge blending, image warping, and geometry correction for diverse surfaces.
Durable Design: Engineered for continuous operation in demanding environments.

Ideal Applications

Large Venues: Auditoriums, concert halls, theaters
Digital Signage & Art Installations
Projection Mapping & Experiential Events
Conference Rooms & Boardrooms
Houses of Worship
Simulation & Training
